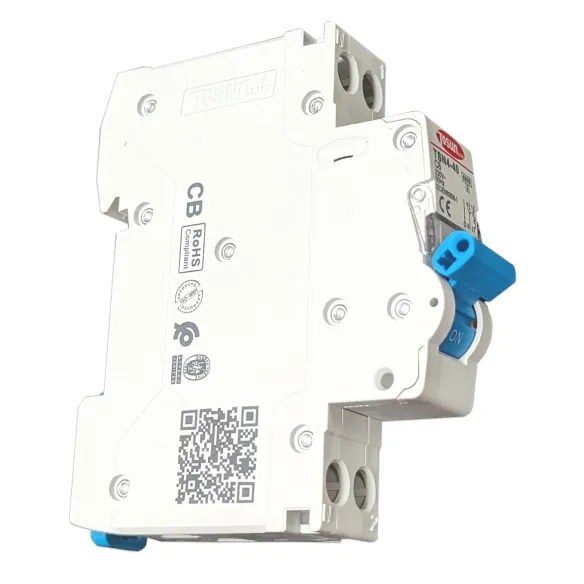

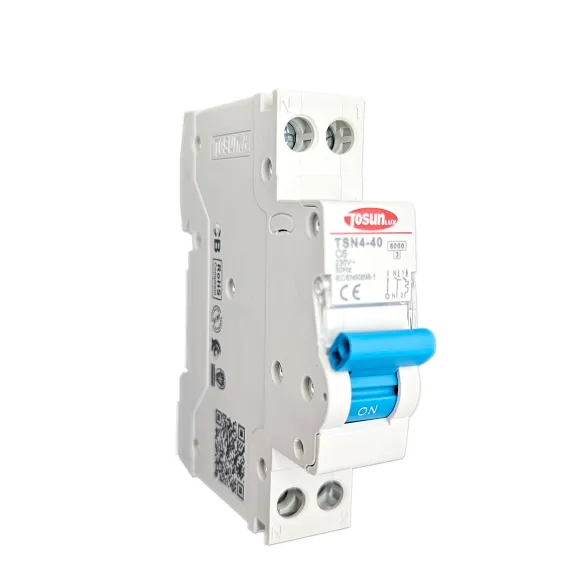

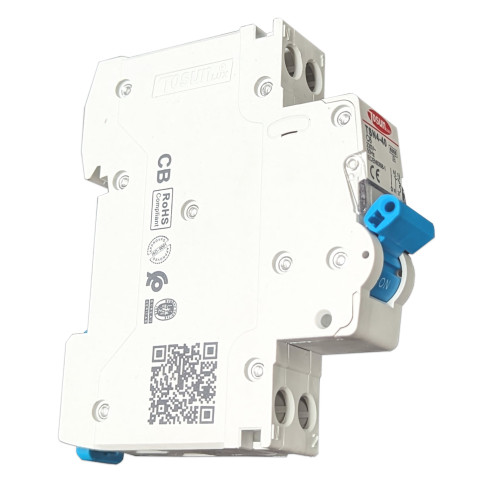

    DPN Miniature Circuit Breaker TSN4-40 1P+N

    €6.63
    VAT included

    Miniature Circuit Breaker TSN4-40 is a high performance DPN. This circuit breaker has the ability to disconnect short circuits up to 6 kA, making it ideal for a wide range of applications.

    • Number of poles: 1P+N.
    • Current rating: Varies from 6A to 40A.
    • Trip unit technology: Thermal-magnetic.
    • Interrupting Capacity: Icn=Ics=6000A.
    • Mechanical Durability: 20000 cycles.

    Intensity
    • 6A
    • 10A
    • 16A
    • 20A
    • 25A
    • 32A
    • 40A

    4,00/5 - 1 review View Reviews

    Description

    Miniature Circuit Breaker TSN4-40

    Tosun's TSN4-40 Miniature Circuit Breaker is an essential component for the safety and efficiency of electrical systems. This DIN rail mounted miniature phase neutral circuit breaker offers absolute protection against short circuit and overload currents in residential and small building applications.

    Miniature Circuit Breaker Features

    The TSN4-40 Miniature Circuit Breaker has an interrupting capacity of Icn=Ics=6000A and a rated operating voltage of 230V/240V. Its trip unit technology is thermal-magnetic and complies with IEC/EN 60898-1 standards. This miniature circuit breaker has a mechanical durability of 20000 cycles and an electrical durability of 10000 cycles.

    Miniature Circuit Breaker Applications

    The TSN4-40 Miniature Circuit Breaker is ideal for use in residential and small building applications where it is essential to protect circuits against short circuit and overload currents. With over 29 years of experience, TOSUNlux is a leading manufacturer and supplier of miniature circuit breakers.

    Product Details

    ReferenceTSN4-40 1P+N 6A
    Warranty3 years
    CertificatesCE & RoHS
    ProtectionIP20
    Current (A)6
    10
    16
    20
    25
    32
    40
    Number of poles1P+N
    Trigger curveC
    StandardsIEC/EN 60898-1
    Mechanical Durability20000 cycles
    Electrical durability10000 cycles
    Network frequency50/60Hz
