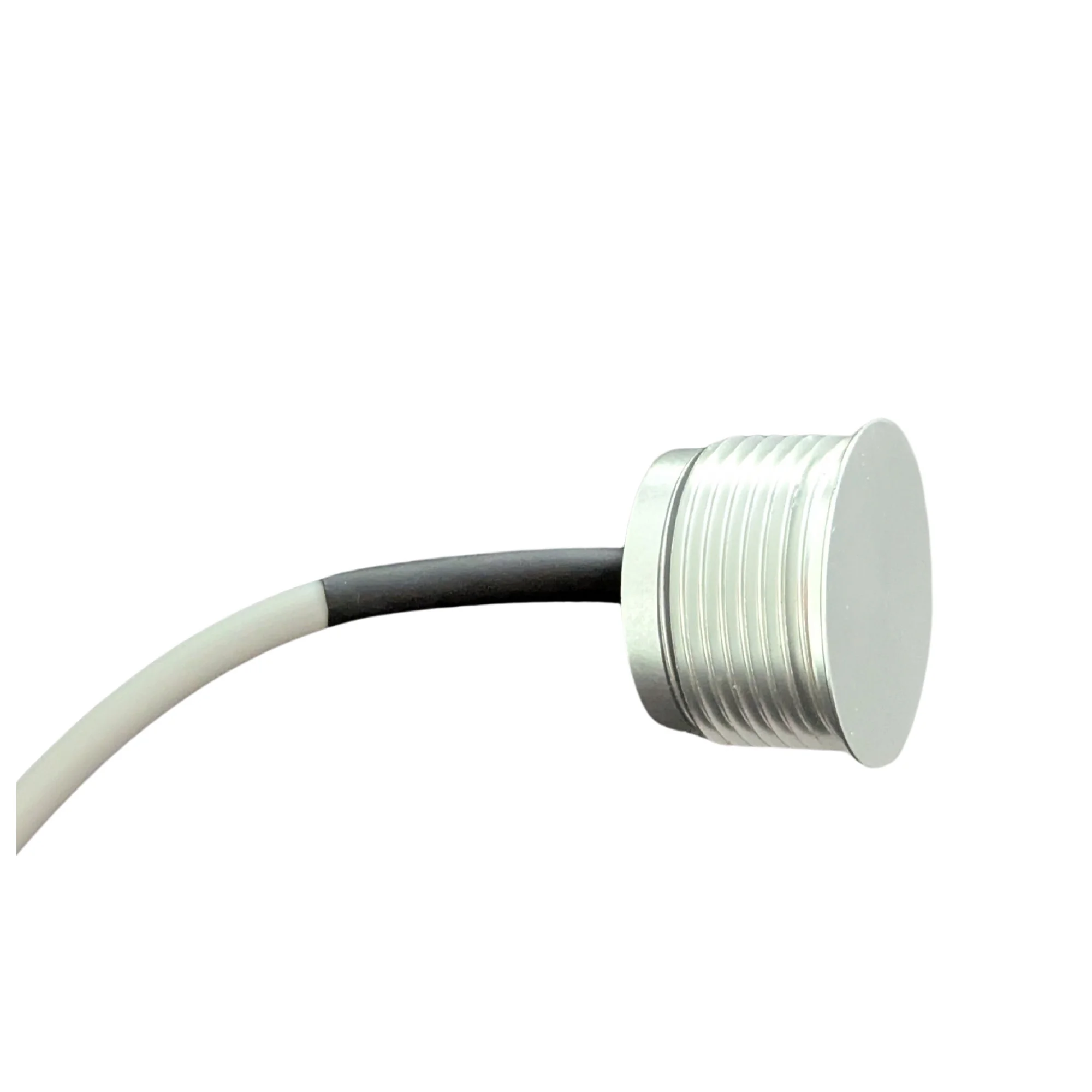

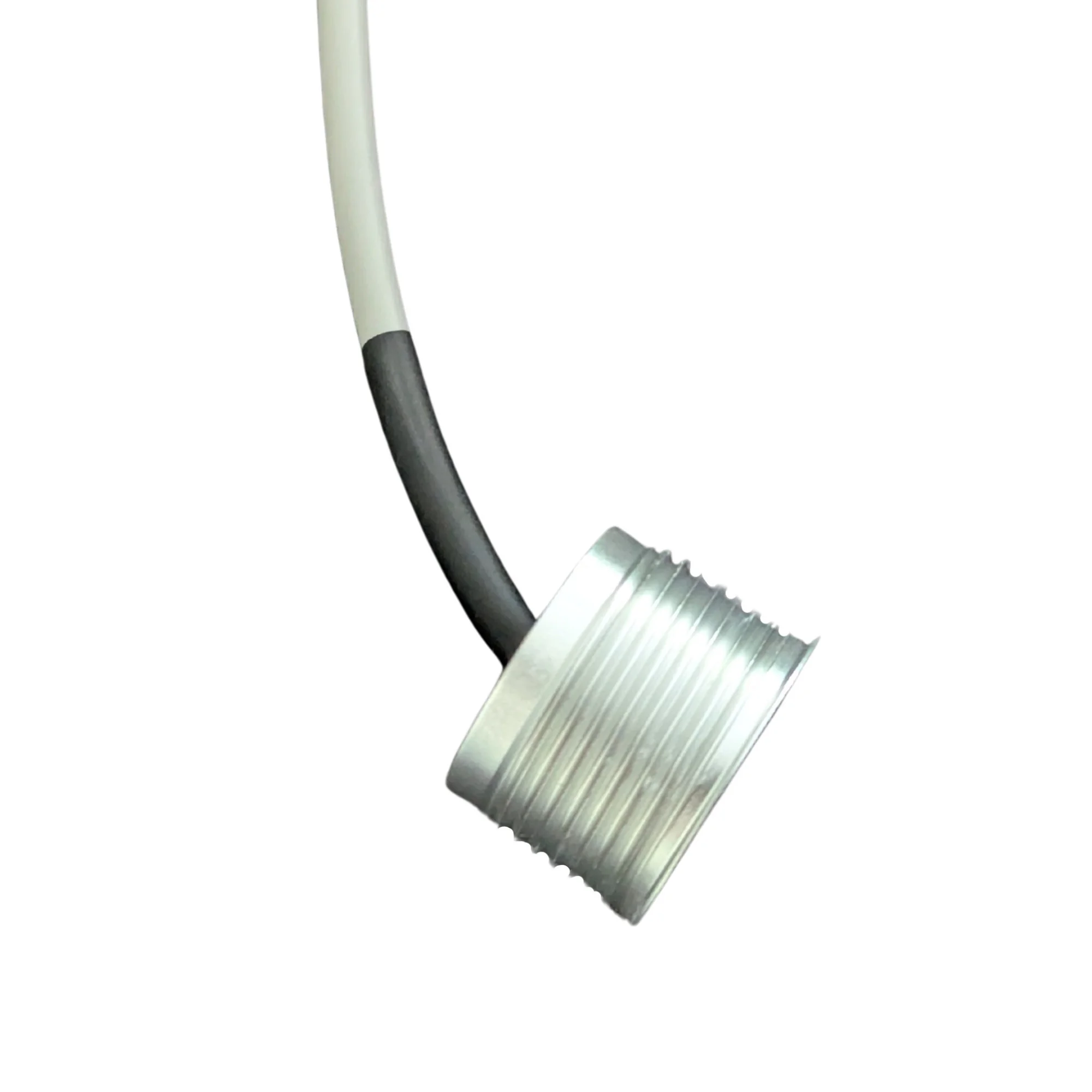

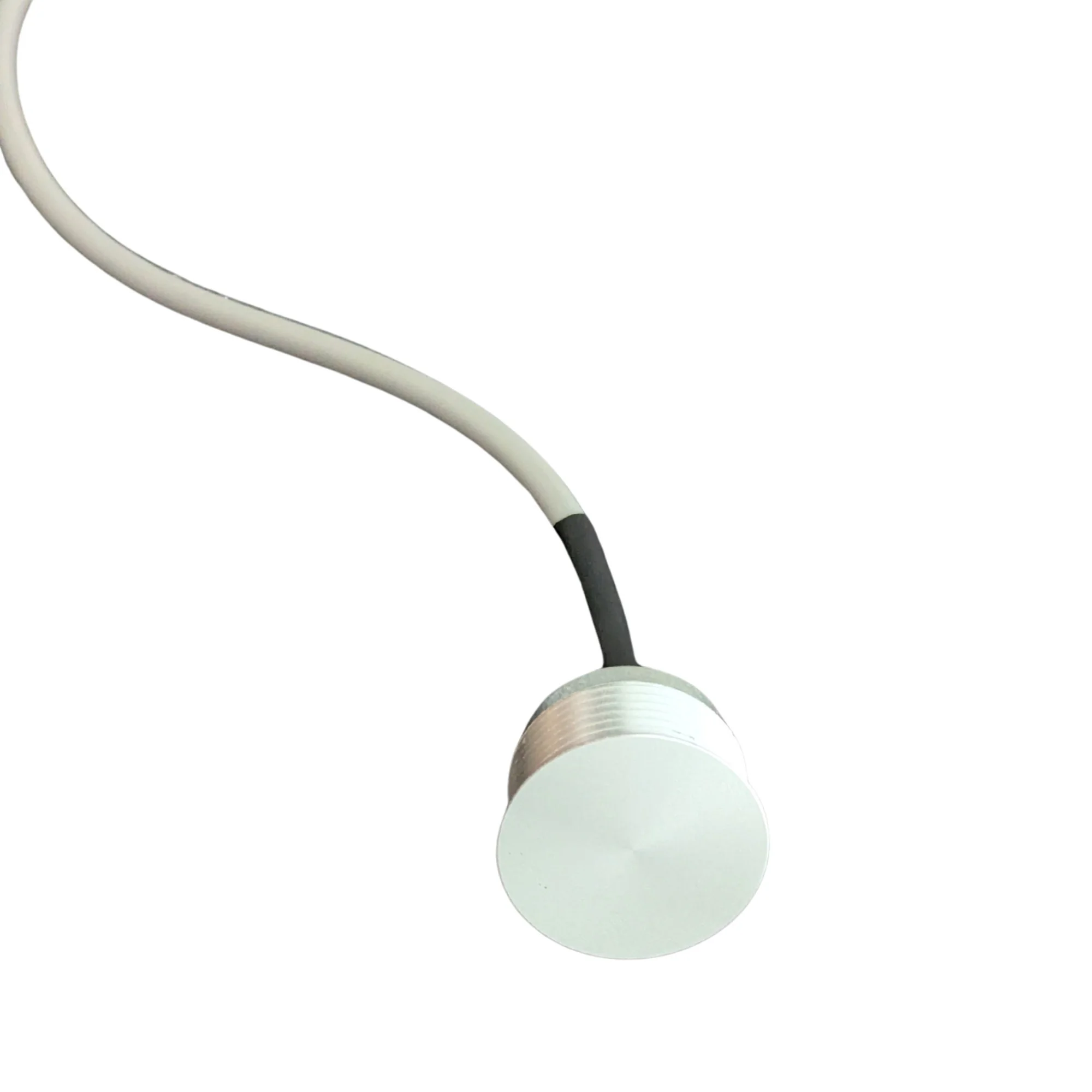

Submersible Piezoelectric Push Button 22mm | Includes 2m Cable | 5-24V AC/DC

The most reliable push button for aquatic environments: Piezoelectric Technology

When installing a button at the edge of a spa or submerged in a pool, reliability is paramount. Traditional mechanical or pneumatic buttons have gaskets and springs that eventually fail due to limescale, sand, and chemicals, leading to water ingress.

This button uses piezoelectric technology. The switch body is a solid, hermetically sealed unit without gaps or moving parts. Pressing the metal surface closes the contact and sends an electronic pulse, ensuring a longer service life and guaranteed IP68 sealing.

The advantage of 2 metres of cabling

Installers know that the weak point of electrical installations in wet zones is the splicing. Most market buttons come with only 50cm or 1m of cable, forcing junction boxes to be placed dangerously close to the water.

We supply this button with 2 metres of factory-sealed cable. This allows you to run the cable directly from the button to a dry area or the control panel, ensuring a clean and safe installation.

Robust Metallic Design

• Body and trim: Manufactured in high-quality Aluminium. Offers excellent mechanical resistance and a professional, modern aesthetic for any spa or pool edge.
• Vandal-resistant: Its flat, metallic design with no removable parts is ideal for public or communal facilities.

⚠️ Technical Note: Voltage and Connection ⚠️

This piezoelectric button operates at low voltage (24V AC/DC) and sends a short electronic pulse; it does not function as a standard 230V light switch.

DO NOT CONNECT DIRECTLY TO 230V or directly to a pump.

To activate a motor (e.g., spa pump or blower), it must work in conjunction with a piezoelectric control module or a relay operating at 5-24V AC/DC. Direct connection to 230V will cause irreversible damage.

Technical Specifications
