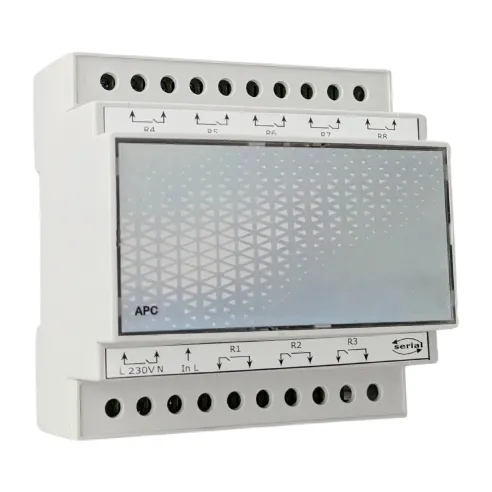

Secuenciador Automático 8 Zonas para Limpieza de Piscinas

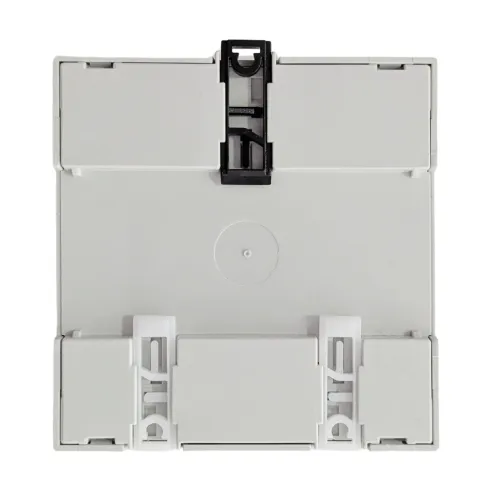

Modular automatic sequencer for DIN rail mounting, designed to precisely manage the sequential activation and deactivation of eight outputs for Net'n'Clean type pool floor cleaning systems. Its architecture, based on a master/slave system, allows the main module to receive the trigger signal and control the rhythm of the sequence, while in extended configurations the complementary module continues the activation after the master's cycle has finished, allowing sequences to be extended to 16 outputs (requires two devices).Operation is based on a programmable timer, configurable through a set of DIP switches. A first group of switches defines the role of the device (master or slave), ensuring a coordinated integration in control networks. A second group allows selecting the time interval for the activation of each output, offering options of 1, 2, 5 or 10 minutes, which allows adjusting the timing of the process according to the needs of the system. Finally, a third set of switches, using a three-bit binary encoding, defines the number of outputs to be used, providing flexibility to adapt the functionality to the specific requirement of the application environment.
