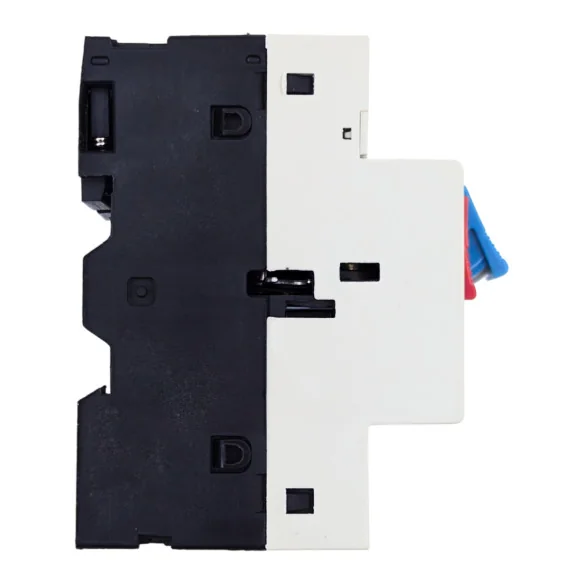

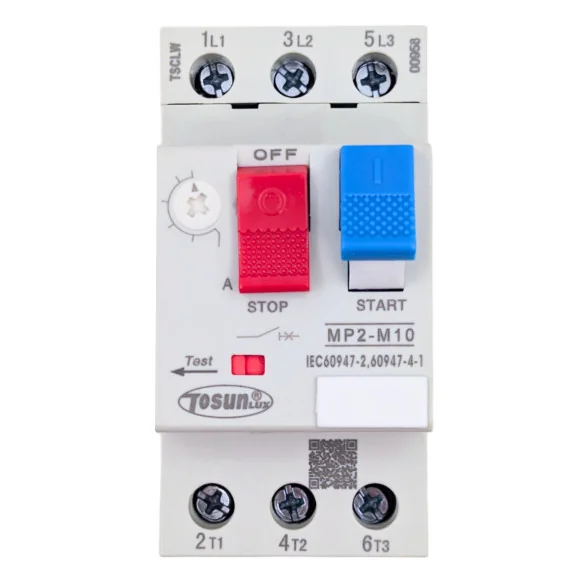

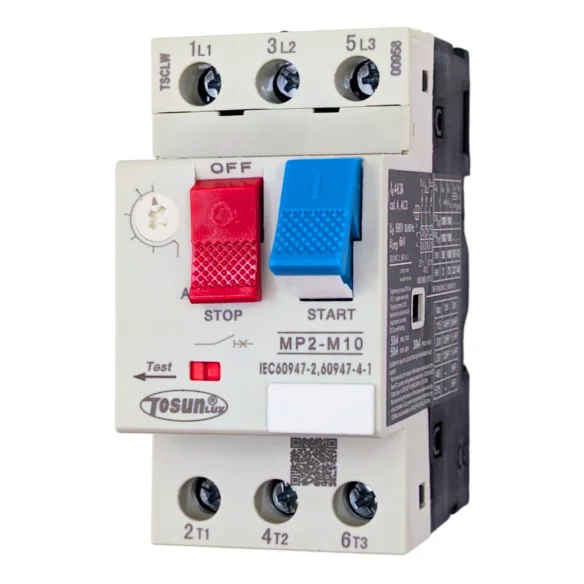

Motor protection switch with 3-pole magneto-thermal protection. Designed to protect motors and electrical circuits. Protects against short circuits (magnetic protection), overloads (thermal protection), and phase failure.

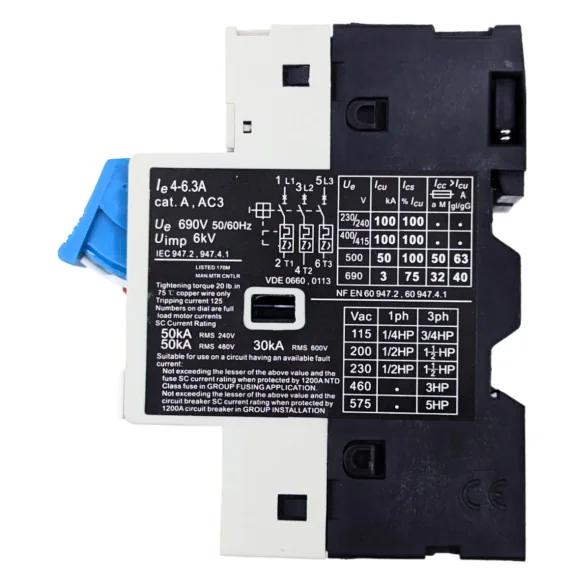

MP series motor protection circuit breakers are mainly used for motor overload and short circuit protection in AC 50/60 Hz, up to 660 V, 1-14 A, as a full voltage starter for starting and shutting down the motor, under AC3 load or for overload and short circuit protection of the circuit and power equipment in the power distribution network.

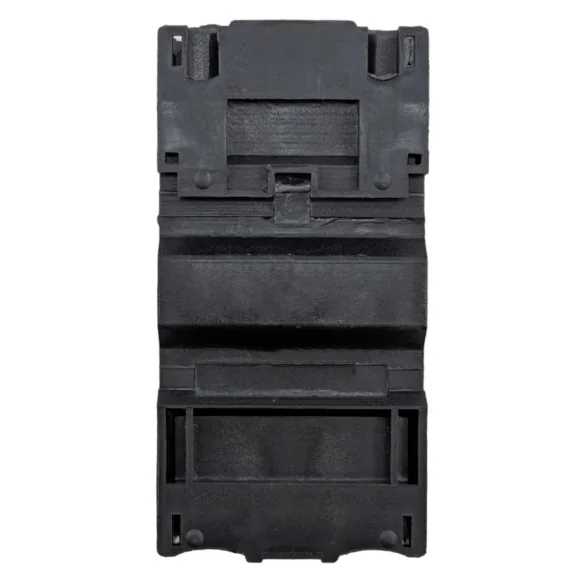

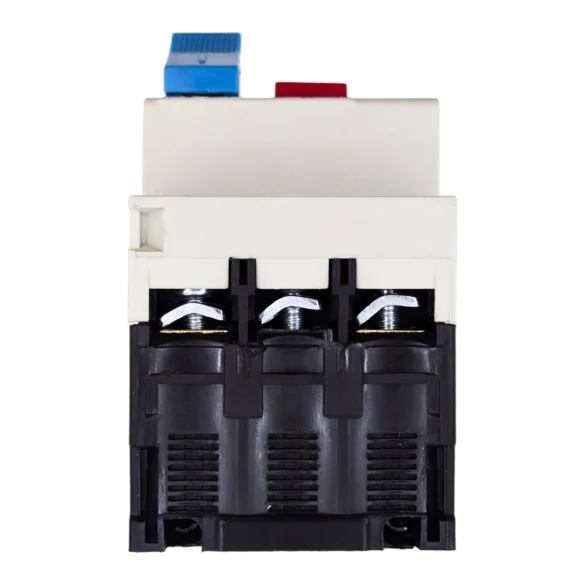

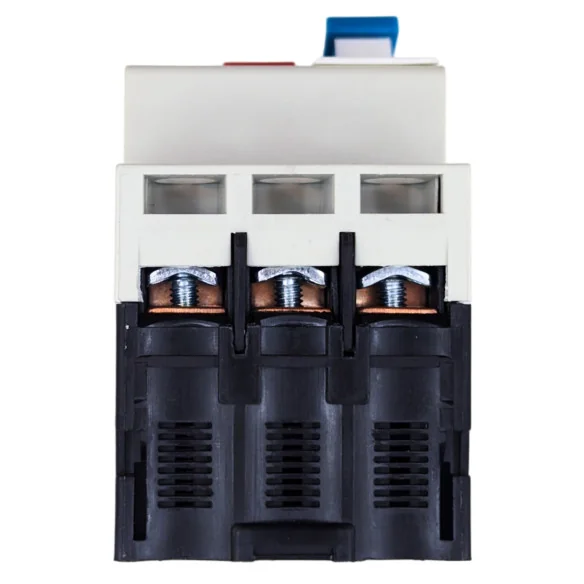

Easy installation on rail. It has a start and stop pushbutton for manual trip control. In addition, the working current range can be easily adjusted within the working range. Cable connection on screw terminals.
| 220V | 380V | 415V | 440V | 500V | 660V | Rating (A) | |
|---|---|---|---|---|---|---|---|
| kW | kW | kW kW | kW kW | kW kW | kW kW | ||
| MP2-M06 | - | 0,37 | - | 0,55 | 0,75 | 1,1 | 1 - 1,6 |
| MP2-M07 | 0,37 | 0,75 | 0,75 | 1,1 | 1,1 | 1,5 | 1,6 - 2 |
| MP2-M08 | 0,75 | 1,5 | 1,5 | 1,5 | 2,2 | 3 | 2 - 4 |
| MP2-M10 | 1,1 | 2,2 | 2,2 | 3 | 3,7 | 4 | 4 - 6,3 |
| MP2-M14 | 2,2 | 4 | 4 | 4 | 5,5 | 7,5 | 6 - 10 |
| MP2-M16 | 3 | 5,5 | 5,5 | 7,5 | 7,5 | 9 | 9 - 14 |
