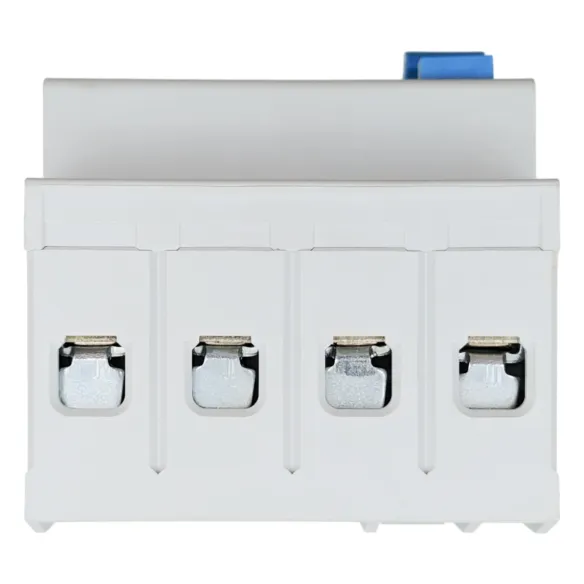

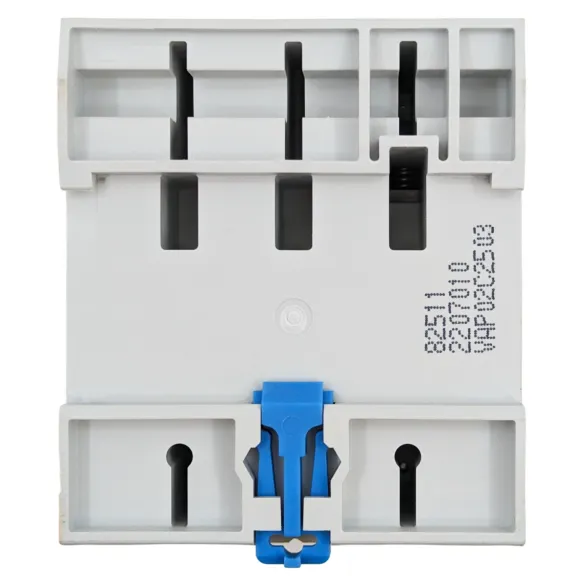

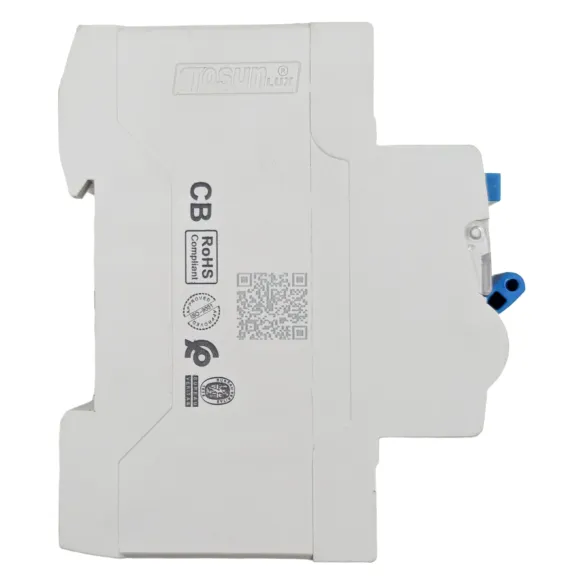

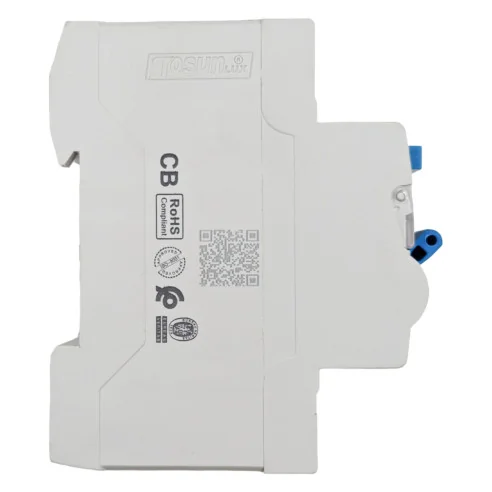

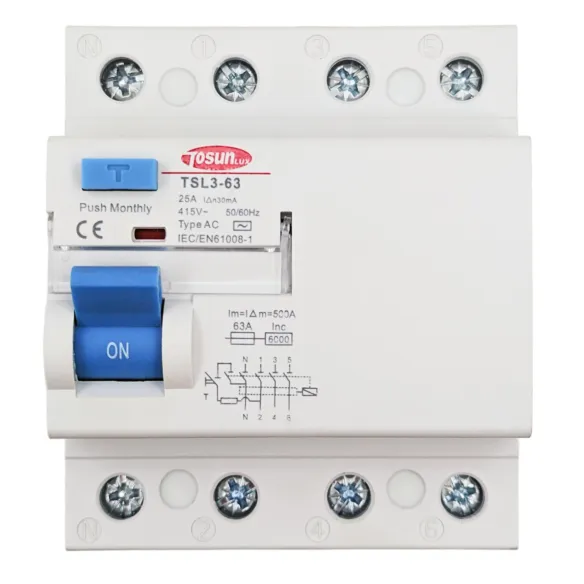

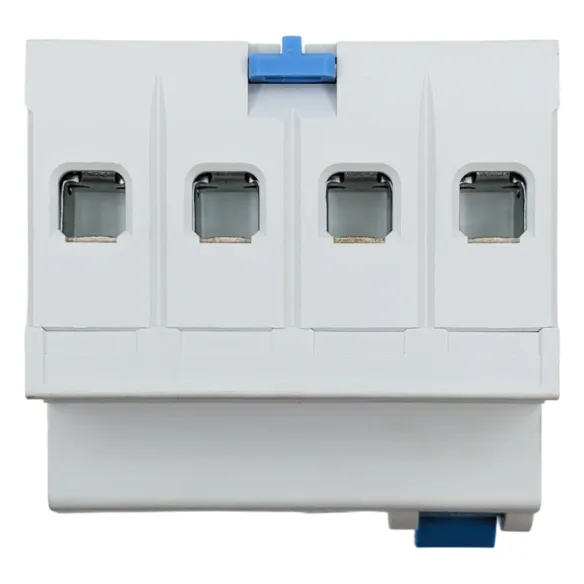

    Three-phase differential 30mA 6KA 3P+N type AC

    The Tosunlux TSL3-63 three-phase residual current circuit breaker, with a sensitivity of 30mA, is essential for safety in electrical installations. Its thermomagnetic technology and rated capacity of up to 63A guarantee effective protection against residual currents.

    • Enhanced Safety: 30mA sensitivity for accurate detection of leakage currents.
    • High Capacity: Supports rated currents from 25A to 63A, suitable for various environments.
    • Durable Design: Mechanical life of 20,000 cycles and electrical life of 10,000 cycles, ensuring long life.
    Intensity
    • 25A
    • 40A
    • 63A
    €15.71
    VAT included

    Total Rating Total Rating:

    0 1 2 3 4
    0/5 - 0 reviews

     Add Review View Reviews View Reviews

    Description

    Tosunlux TSL3-63 Three-Phase Differential: Safety in Electrical Protection

    Invest in safety and efficiency with the Tosunlux TSL3-63 Three-Phase Differential Circuit Breaker, a state-of-the-art device in electrical protection. With more than 25 years of specialisation, Tosunlux offers this three-phase circuit breaker with advanced technology, ensuring maximum protection for your electrical installations.

    Main Features

    • Compliance with Standards: Complies with IEC/EN 61008-1 and IEC/EN 60898-1 standards, guaranteeing quality and safety.
    • Durability: Mechanical life of 20,000 cycles and electrical life of 10,000 cycles, for long-lasting, reliable performance.
    • Sensitivity and Capacity: 30mA sensitivity and 6000A breaking capacity, suitable for 25A, 40A and 63A currents.
    • Operating Temperature: Optimum performance over a temperature range of -5 to 40°C.

    Benefits and Applications

    The TSL3-63 three-phase residual current circuit breaker is ideal for residential and commercial applications, offering protection against leakage currents and short circuits. Its three-phase design makes it perfectly suited for more complex and higher loaded systems.

    In addition, Tosunlux guarantees a quality product with a full replacement service during the warranty period in case of defects, reaffirming its commitment to excellence and customer satisfaction.

    The three-phase circuit breaker is CE and RoSH certified, as well as Intertek quality certified, ensuring optimum and safe operation throughout its lifetime.

    Product Details

    Certificates
    CE & RoHS
    Breaking capacity
    6000A
    Type of CDW
    AC
    Sensitivity (mA)
    30
    Voltage (Ue)
    415V~
    Short-circuit rating (Icn) according to IEC / EN 60898
    6kA
    Standards
    IEC/EN 60898-1
    Mechanical Durability
    20000 cycles
    Electrical durability
    10000 cycles
    Working temperature
    -5~40°C
    [Ui] Rated insulation voltage
    415V
    [Uimp] Rated impulse withstand voltage
    4000V
    TSL3-63 4P 25A
    6940151001546
