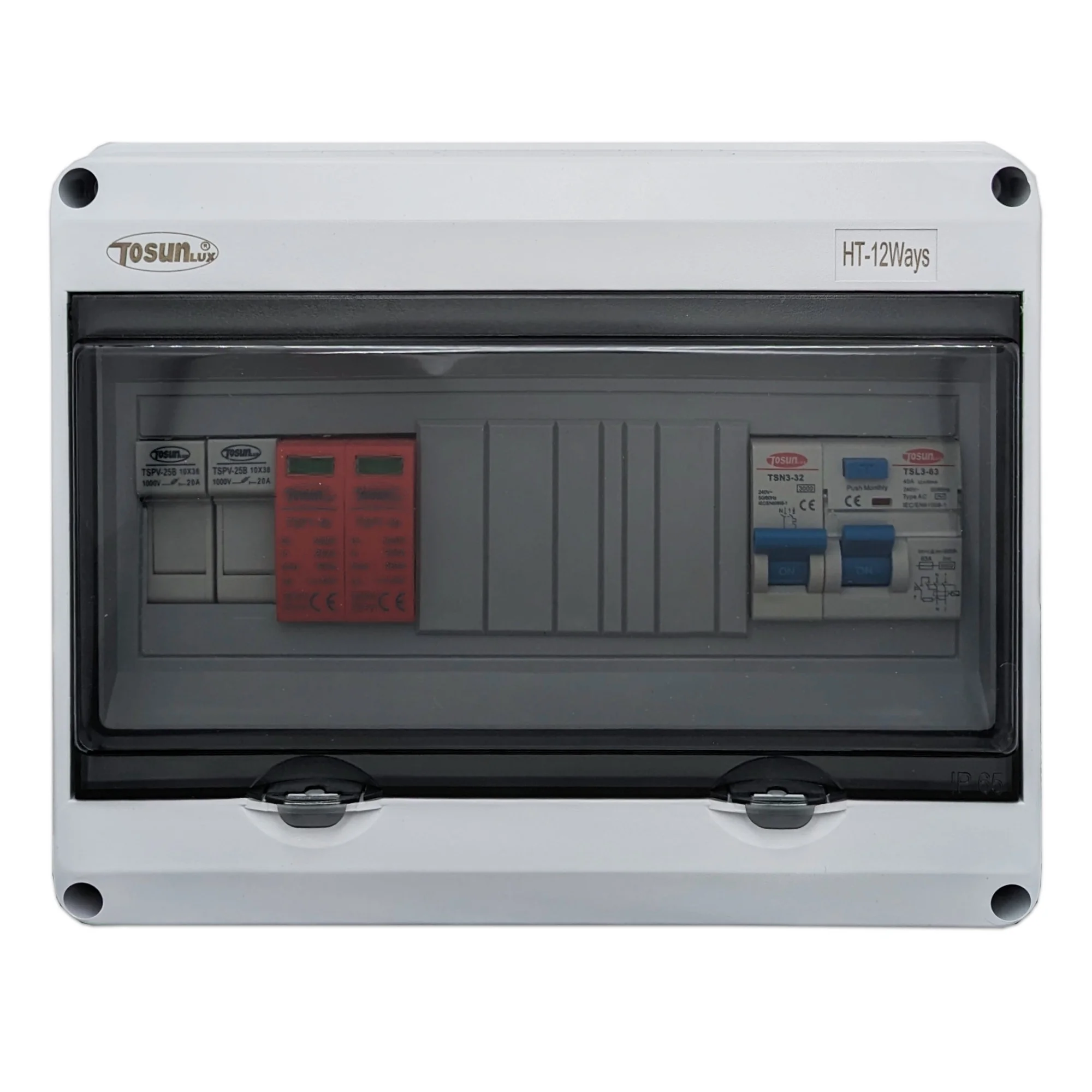

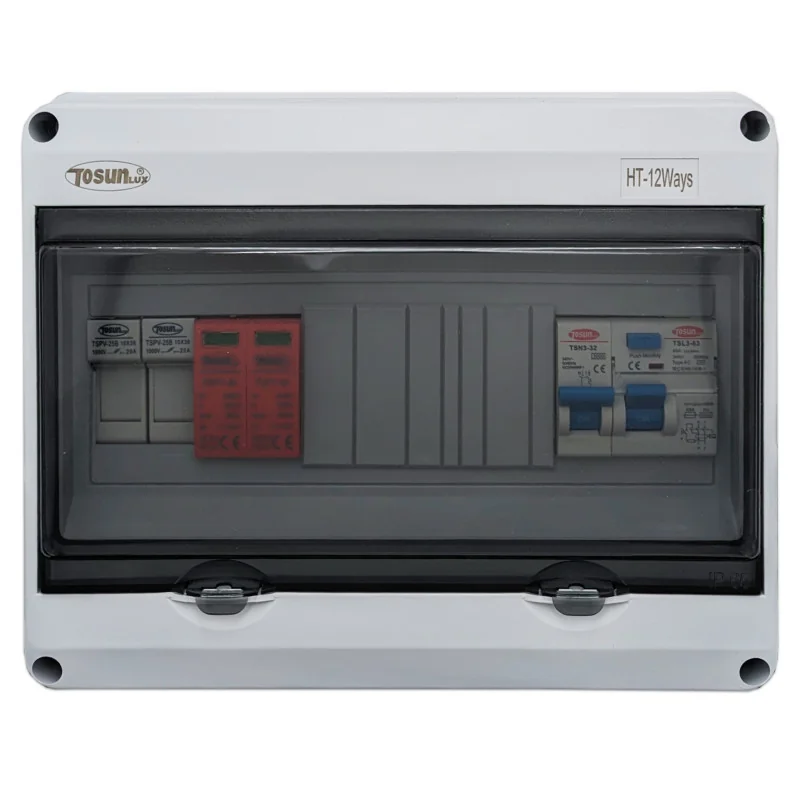

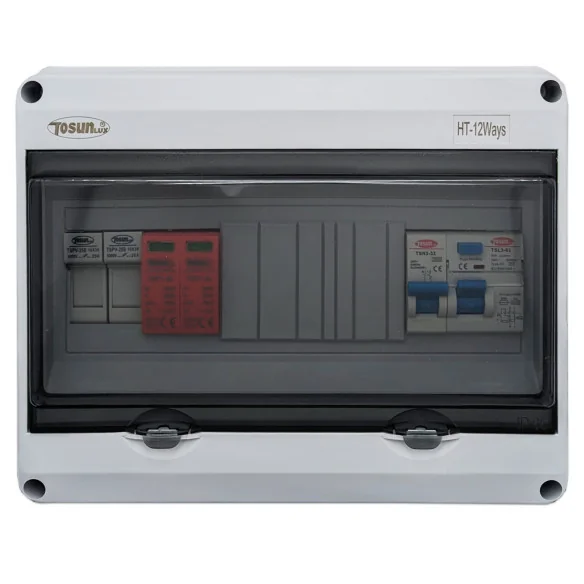

DC/AC Protection Panel 4kW

Electrical protection panel for photovoltaic installations

Our electrical protection panel for photovoltaic installations provides a comprehensive solution to ensure the safety and longevity of your solar energy system. Equipped with advanced protective features, this panel is essential for preventing damage from overloads and overvoltages in the DC section.

• Overload and overvoltage protection: The panel includes specific protections to prevent overloads and voltage spikes, effectively shielding your inverter and preventing short circuits or earth faults.
• Fuse holders and fuses: Includes two fuse holders equipped with 20A 1000V fuses for superior overcurrent protection.
• Transient surge protector: Rated up to 1000V, this device protects your equipment against damaging voltage surges.
• Circuit breaker and RCD: Features a 20A circuit breaker and a 30mA residual current device to protect against short circuits and earth leakage, ensuring personal safety.
• MC4 connections: Includes two male and two female MC4 connectors. These are supplied separately for installation, allowing for flexible positioning according to your specific needs.
• Waterproof design: Housed in an IP65-rated enclosure, this panel is rain-resistant, ensuring reliable performance even in adverse weather conditions.

Protect your solar energy investment with our professional-grade electrical protection panel. Your installation deserves the highest level of security.

Applications and Importance

This protection panel is specifically designed for photovoltaic installations. Its primary role is to protect the system—particularly the inverter, which converts DC energy from panels into AC for household use—against electrical anomalies that could reduce efficiency or destroy components. By preventing short circuits and earth faults, it provides vital safety for both the system and the people working or living nearby. Investing in this protection helps extend the lifespan of your solar components, ensuring a better return on your investment.
