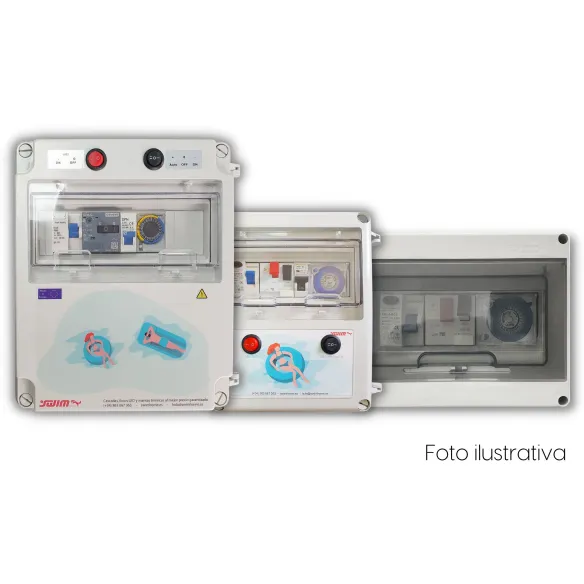

Pool Electrical Panel Configurator *Required step
Configure your pool's electrical panel in a few simple steps. In the configurator you can create an electrical panel for the filtration of your pool and add different elements to it, such as a transformer.
You can also create an electrical panel exclusively for pool lighting (without a water pump). You must complete all the steps to be able to add the order to your cart. Please note that the size of the box varies according to the elements selected, the most suitable box for your configuration will be used.
- IP65 enclosure.
- 3 year warranty on all elements.
- Custom configuration in a few simple steps.
If you need an enclosure with different characteristics, do not hesitate to contact us for a customised quote.
The differential switch is a mandatory element in the light switchboard. It has the ability to protect electrical installations from short circuits, possible fires and people from suffering electric shocks. Select No only if you only want to purchase a transformer with IP65 protection and you are going to install it connected to another electrical panel that does have a differential.
The differential switch is a mandatory element in the light switchboard. It has the ability to protect electrical installations from short circuits, possible fires and people from suffering electric shocks. Select No only if you only want to purchase a transformer with IP65 protection and you are going to install it connected to another electrical panel that does have a differential.
does it have a water pump for filtration? If yes, a motor protection device and a clock for programming the water pump according to the time schedule shall be included.
do you have a filter pump? In this case, a motor guard, a contactor and a clock for programming the pump will be added.
Please indicate the power of your pump in hp
Select your transformer or power supply. Note that the transformer must be compatible with your current lighting system. You can check this information on the bulb's data sheet, but if it is not available, if your lighting has a 2-wire cable it is generally 12V AC and if it has 4 or 5 wires it is 12V DC.
Depending on the transformer you have selected, you will be shown the compatible controllers.

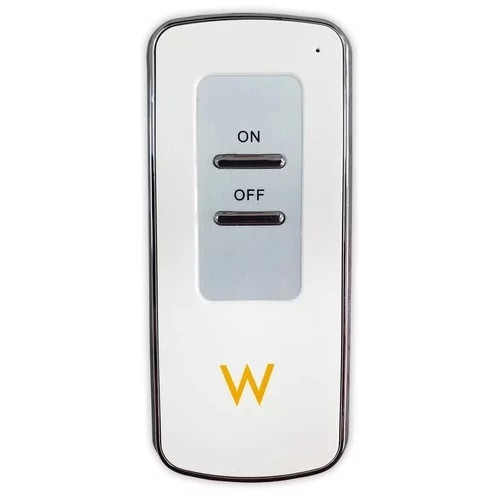

Remote ON/OFF Control: Allows you to turn your lighting on and off.
Synchronizer: Only compatible with selected RGB spotlights: Click here for more information

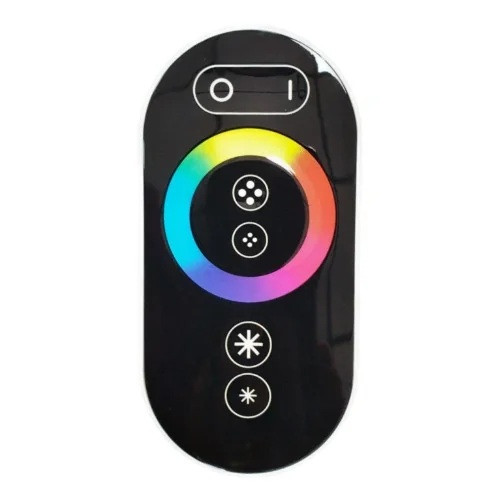

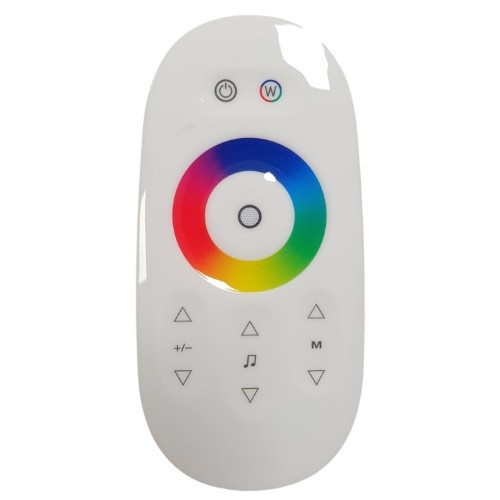

RGBV+: Remote Control for RGB bulbs with 4-wire cable.
Remote Control: Allows you to turn on and off your lighting and control the intensity in white LED light

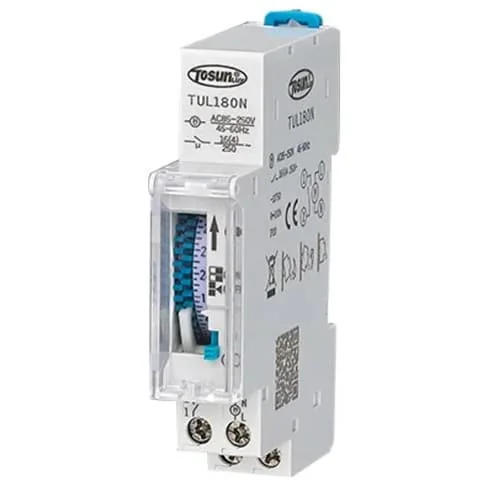

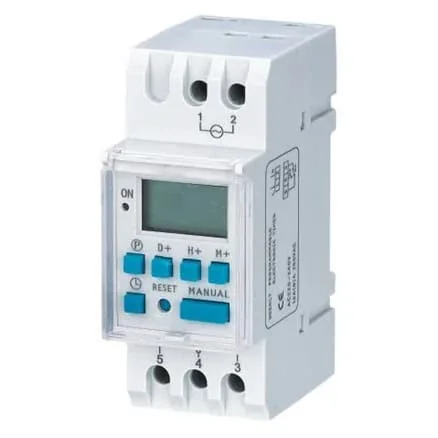

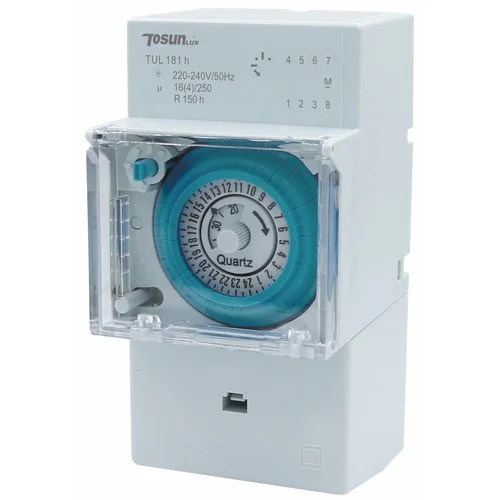

Clock: Allows you to select the hours in which the system will remain on and off
You can select the clock and a remote control in the same installation, but not two remote control systems. The clock will override the remote control. This means that the system will only operate within the hours enabled on the clock, although you can use the remote control during those hours.
The motor contactor adds a relay to directly connect the filter pump. This extends the life of the clock and other switchgear.
The motor contactor adds a relay to directly connect the filter pump. This extends the life of the clock and other switchgear.
Necessary in panels with pumps of 2hp or more.
It includes a thermal and a contactor. It will allow you to manually disconnect the Chlorinator and PH Pump, and the system will turn the Chlorinator and PH Pump on and off at the same time as the filtration pump is turned on and off.

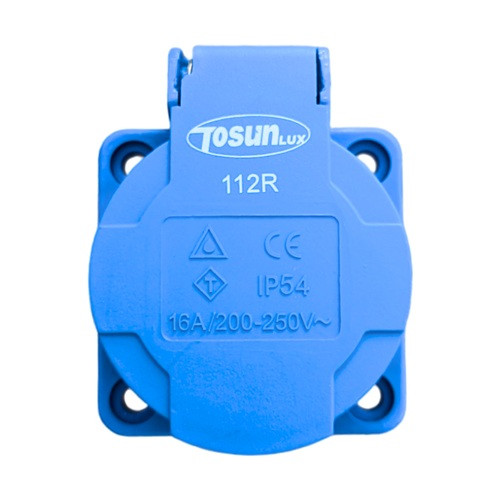

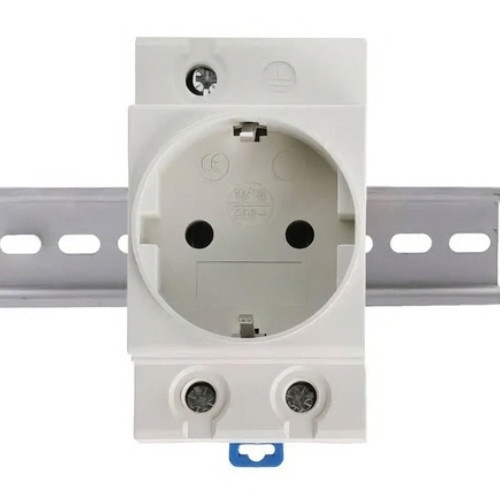

A socket shall be added in the frame housing with cover.
A cable will be included to plug the electrical panel directly into a socket. This simplifies the installation of the panel
Select the length of the power cord in meters. The length will be measured from the outlet on the electrical panel to the plug. There may be a variation of +/- 5 cm
Swimming Pool Electrical Panel Configurator: Customised Solutions for your needs
Introducing our innovative Pool Control Panel Configurator, a tool designed to offer electrical control solutions completely customised to your specific needs. With this tool, you can easily design a customised electrical panel for your pool filtration or lighting, adding elements such as transformers as your project requires.
Customised and Flexible Design
Our configurator allows the creation of an electrical panel that perfectly suits the unique characteristics of your pool. Whether you need a system focused on filtration, lighting or a combination of both, the configurator guides you through a simple process to select and add the necessary elements.
Key Features
- IP65 Enclosures: All configurations are housed in IP65 rated enclosures, ensuring protection against dust and water, which is essential for a pool environment.
- 3 Year Warranty: We offer a 3 year warranty on all electrical enclosure elements, ensuring the quality and reliability of our products.
- Complete Customisation: From component selection to enclosure size, every aspect of the electrical panel can be customised to meet your specific requirements.
Easy Configuration and Ordering
The configuration process is intuitive and guides the user step-by-step, ensuring that all necessary components are included. Once the configuration is complete, the order can be easily added to the cart for manufacturing. The size of the box is automatically selected to suit the chosen components, ensuring a perfect fit and neat aesthetics.
Customised Service for Unique Needs
We understand that every pool is unique and may have specific requirements. If you require an electrical box with particular features that are not available in the configurator, we are on hand to provide a personalised quotation and expert advice to meet your special needs.
